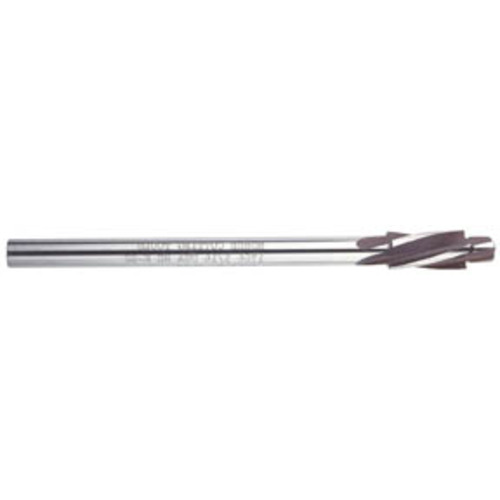

| Cutting Diameter (DC) | 0.227″ | Shank Type | Round |
| Length Chip Flute (LCF) | 3/4″ | Flute Type | On Size |
| Pilot Drill Diameter (PDD) | 0.138″ | For Screw Size | #6 |
| Overall Length (OAL) | 4-5/8″ | Coating | Uncoated |
| Connection Diameter Machine Side (DCONMS) | 7/32″ | Cutting Edge Material | HSS |
| Flute Count (NOF) | 4 | Series/List # | 1766 |
Product Features
| Remarks | •Cap Screw Counterbores •For producing counterbored clearance holes for the heads of socket head cap screws. •Recommended for a wide range of material types. | Country of Origin | USA |
Shipping Info
Package Length
4.75000
Package Width
.50000
Package Height
.50000
Package Weight
0.05
