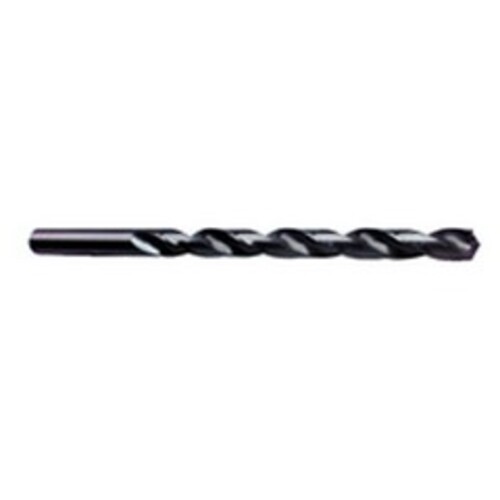

2314 3/32″ HD/TL DRL COB
Taper Length Drill; 3/32″ Dia. × 3/32″ Shank Dia. × 4-1/4″ OAL × 2-1/4″ Flute Length ; HSSCo ; Uncoated ; Series 2314
Additional Canadian Tariff of 25 %
| Drill Bit Size / Cutting Diameter (DC) | 3/32″ | Flute Length | 2-1/4″ |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 3/32″ | Flute Type | Standard |
| Decimal Equivalent | 0.0938″ | Length Group | 7xD |
| Angle | 135 Degrees | Measurement Type | Fractional |
| Coating | Uncoated | Overall Length (OAL) | 4-1/4″ |
| Coolant Supply Property (CSP) | External | Point Shape | Split |
| Shank Size (SS) | 3/32″ | Shank Type | Round |
| Cutting Edge Material | HSSCo | Series/List # | 2314 |
Product Features
| Remarks | Country of Origin | USA |
Shipping Info
Additional Fees and Notes
0
Package Length
3.20000
Package Width
.09000
Package Height
.09000
Package Weight
0.01
