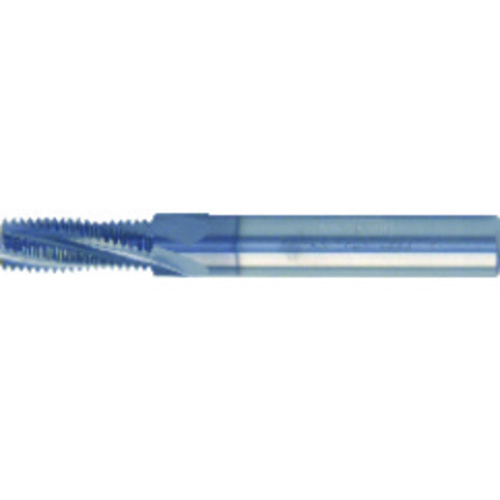

‎5900 6-32 SC THD MILL

‎Thread Mill; #6 - 32 ; 1/8″ Shank Dia. × 2″ OAL ; Carbide ; AlTiN ; Series 5900

Item # MT3098600

UNSPSC: 23291800

Brand: Morse Cutting Tools

MFG#: 98600

UPC #: 01023719 | 68612598600 | 686125986001

Additional Canadian Tariff of 25 %

Quantity Available

Virtual Catalog

Thread Size

Coating

AlTiN

Threads per Inch (TPI)

Application

External Thread Milling

Thread Standard

Applicable Material

Connection Diameter Machine Side (DCONMS)

1/8″

Flute Helix Angle (FHA)

20 Degrees

Cutting Diameter (DC)

0.1″

Cutting Edge Material

Carbide

Overall Length (OAL)

2″

Usable Length (LU)

0.218″

Flute Count (NOF)

Series/List #

5900

Coolant Supply Property (CSP)

External

Body Material

Carbide

Shank Type

Round

Product Features

Remarks

Solid Carbide Thread Mills• Reduced Tool Inventory. One Thread Mill Can Produce internal & external threads. left hand & right hand threads, different thread diameters of the same pitch and through hole & blind hole threads.• Requires Less Power. Produce coarse pitches and large diameters on lower H.P. machines.• Tough Threading Applications. Thread harder, difficult-to-machine & gummy materials that cause problems for taps.• Helical Flutes for reduced cutting forces, improved thread qualtiy & increased tool life.• Precision Threading. Control pitch diameter precisely via programming. Precision thread depth control & positional accuracy. Produce 100% thread heights. Produce full threads to within one pitch of a shoulder or blind hole bottom.• Easily Removed if Broken. No need for EDM burn-out.• 10% Micrograin Carbide offers higher cutting speeds, high rigidity, excellent hardness, wear resistance and heat resistance and long tool life.• ALTiN - Alumimum Titanium Nitride is an excellent all-around coating that is especially recommended for high thermal stress applications including dry machining, abrasive materials and difficult-to-machine materials. Benefits include higher cutting speeds and longer tool life.

Country of Origin

USA

Shipping Info

Additional Fees and Notes

Package Length

3.12500

Package Width

.37500

Package Height

.37500

Package Weight

0.025
