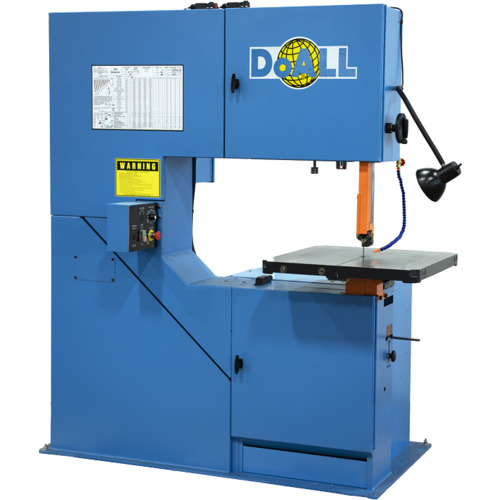

3613-V5 CONTOUR

Item # DA2112347

UNSPSC: 27112802

Brand: DoALL

MFG#: 3613-V5

Quantity Available

Horizontal/Vertical

Vertical

Blade Thickness

‎0.032″ - 0.035″

round_capacity__90deg

13″

Blade Width

‎1/16″-1″

rectangle_capacity__90deg

13″ × 36″

Drive System

Variable Frequency AC Drive

Horsepower

5 hp

Miter-Cutting

Voltage

208 V/460 V

Table Tilt

‎10P-45N

Phase

3 Phase

Series/List #

Contour

Blade Length

199″

Product Features

Remarks

• Production Level: Medium/Intermediate • Speed: High-Speed • Standard features: 5 Hp Drive Motor, Work Light, Chip Blower and Post Elevating Hand Wheel • Take all of the features and benefits of the 36XX Series of DoALL band saws and turn it up a notch with a higher-speed cutting rate for volume production applications. • The DoALL 3613-V5 high speed, vertical contour band saw features a variable frequency 5 hp (3.75 kW) AC inverter drive controls that start the motion of the band wheels slowly to reduce mechanical shock and increase drive train life. As an additional safety feature for the operator, a dynamic braking function rapidly stops blade motion when power is shut-off – reducing kickback from materials and injury from the band saw blade. • The 3613-V5 medium production, upright metal cutting band saw is widely used in locations that cut a large variety of materials in one production day. The 3613-V5 can also be used for plastics, wood and other materials – making it a flexible "work horse" for facilities that demand only the best finished products.

Country of Origin

Taiwan
